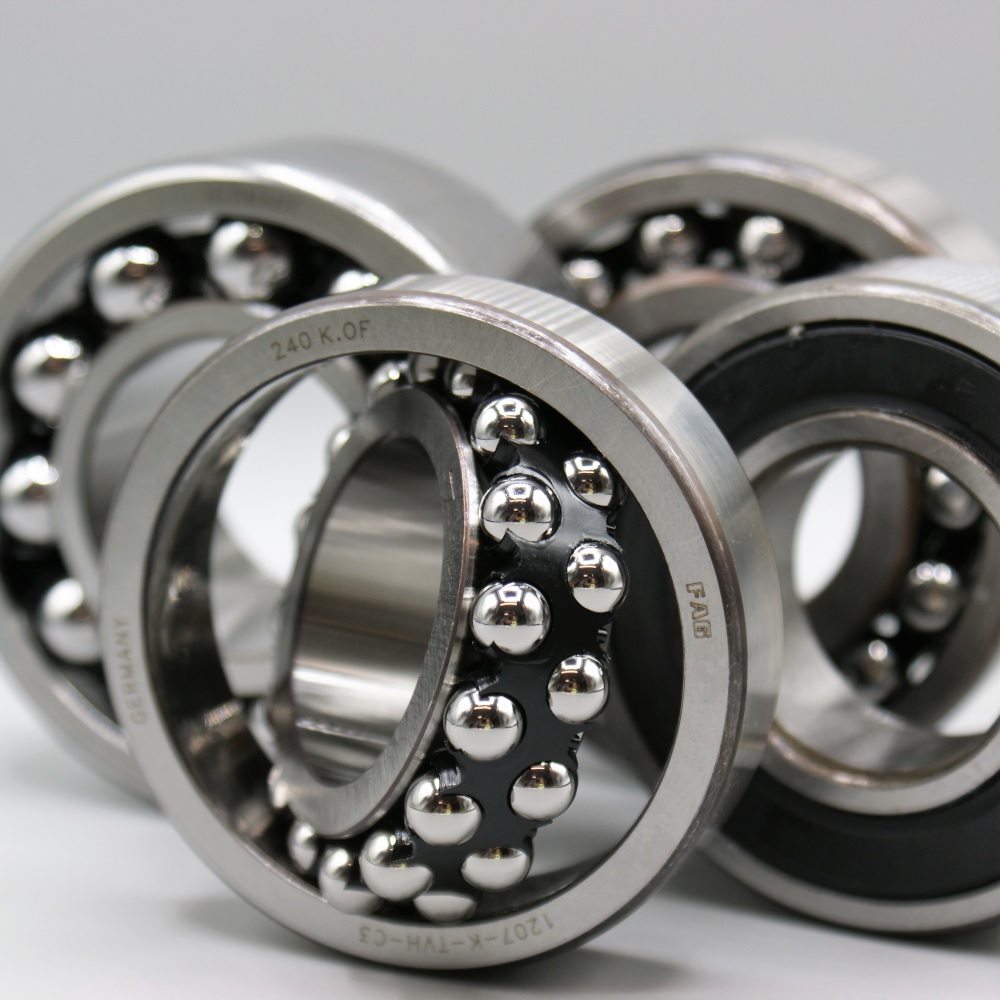

20mm Self Aligning Ball Bearing
- SKU: -1204
Product Details
The outer ring raceway of self-aligning ball bearings forms a spherical surface whose centre is common to the bearing centre. The inner ring of the bearing has two raceways. The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft/housing finishing unevenness, bearing fitting error, and other sources of misalignment. Since axial load capacity is limited, self-aligning ball bearings are not suitable for applications with heavy axial loads.
Product Specifications
| inside dia id (mm) | 20 |
|---|---|
| outside dia od (mm) | 47 |
| width (w) (mm) | 14 |
| Model Ref | Name | UOI | Price (ex. VAT) | Stock | Qty |
|---|---|---|---|---|---|
| -1204 | Self Aligning Ball Bearing 20mm ID x47mm OD x 14mm Wide | 1 | £20.13 | In Stock | |
| -2304-2RS | Self Aligning Ball Bearing 20mm ID x52mm OD x 21mm Wide | 1 | £43.08 | In Stock | |
| -1204K | Self Aligning Ball Bearing 20mm ID x47mm OD x 14mm Wide | 1 | £21.09 | In Stock | |
| -1304 | Self Aligning Ball Bearing 20mm ID x52mm OD x 15mm Wide | 1 | £27.11 | In Stock | |
| -2204-2RS | Self Aligning Ball Bearing 20mm ID x47mm OD x 18mm Wide | 1 | £31.29 | In Stock | |
| -2204 | Self Aligning Ball Bearing 20mm ID x47mm OD x 18mm Wide | 1 | £25.76 | In Stock | |
| -2304 | Self Aligning Ball Bearing 20mm ID x52mm OD x 21mm Wide | 1 | £35.64 | 2-3 Days |
