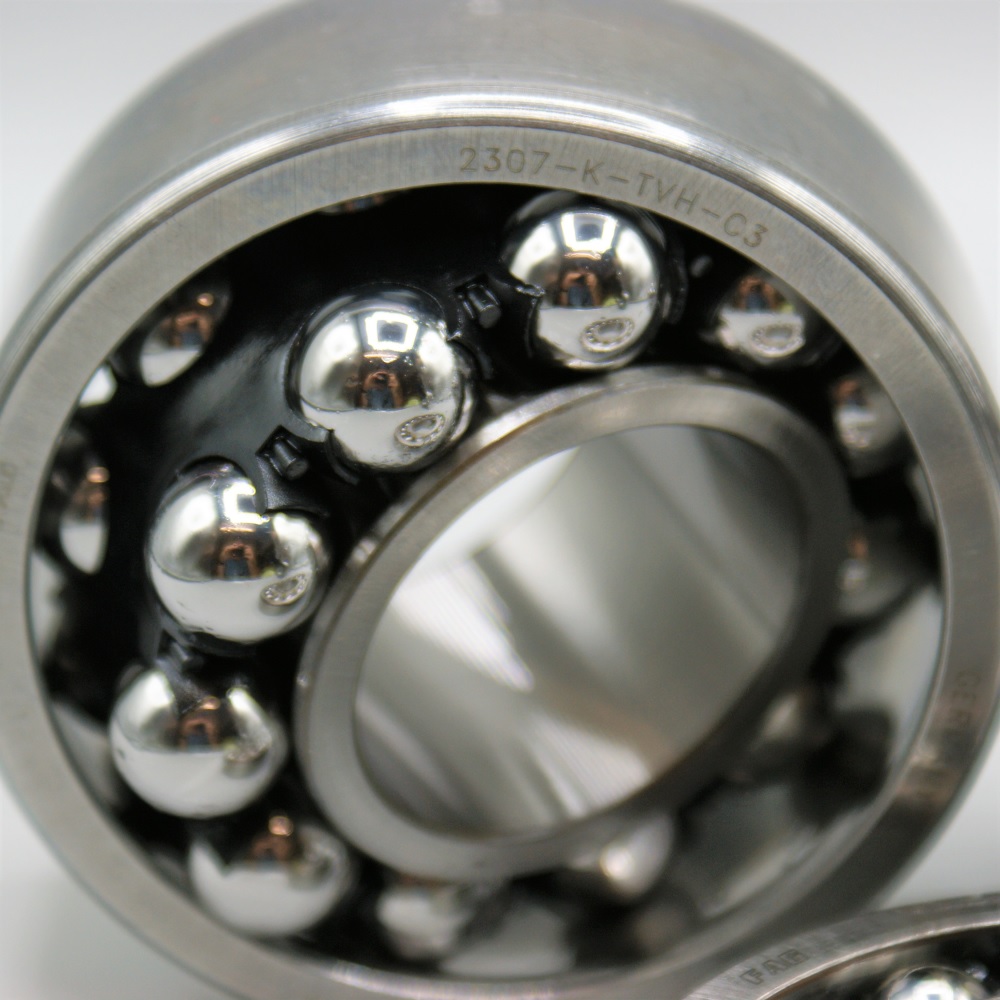

30mm Self Aligning Ball Bearing
- SKU: -1206
Product Details
The outer ring raceway of self-aligning ball bearings forms a spherical surface whose centre is common to the bearing centre. The inner ring of the bearing has two raceways. The balls, cage, and inner ring of these bearings are capable of shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft/housing finishing unevenness, bearing fitting error, and other sources of misalignment. Since axial load capacity is limited, self-aligning ball bearings are not suitable for applications with heavy axial loads.
Product Specifications
| Manufacturer Product Code | 1206-TVH-C3/FAG |
|---|---|
| inside dia id (mm) | 30 |
| outside dia od (mm) | 62 |
| width (w) (mm) | 16 |
| Model Ref | Name | UOI | Price (ex. VAT) | Stock | Qty |
|---|---|---|---|---|---|
| -1206 | Self Aligning Ball Bearing 30mm ID x62mm OD x 16mm Wide | 1 | £23.00 | In Stock | |
| -2206 | Self Aligning Ball Bearing 30mm ID x62mm OD x 20mm Wide | 1 | £31.54 | In Stock | |
| -2306-2RS | Self Aligning Ball Bearing 30mm ID x72mm OD x 37mm Wide | 1 | £66.93 | In Stock | |
| -2306 | Self Aligning Ball Bearing 30mm ID x72mm OD x 27mm Wide | 1 | £55.34 | In Stock | |
| -2306K | Self Aligning Ball Bearing 30mm ID x72mm OD x 37mm Wide | 1 | £52.58 | In Stock | |
| -1306 | Self Aligning Ball Bearing 30mm ID x72mm OD x 19mm Wide | 1 | £39.03 | 2-3 Days | |
| -1206K | Self Aligning Ball Bearing 30mm ID x62mm OD x 16mm Wide | 1 | £24.28 | In Stock | |
| -2206-2RS | Self Aligning Ball Bearing 30mm ID x62mm OD x 20mm Wide | 1 | £38.25 | In Stock | |
| -2206K | Self Aligning Ball Bearing 30mm ID x62mm OD x 20mm Wide | 1 | £32.60 | 2-3 Days |
