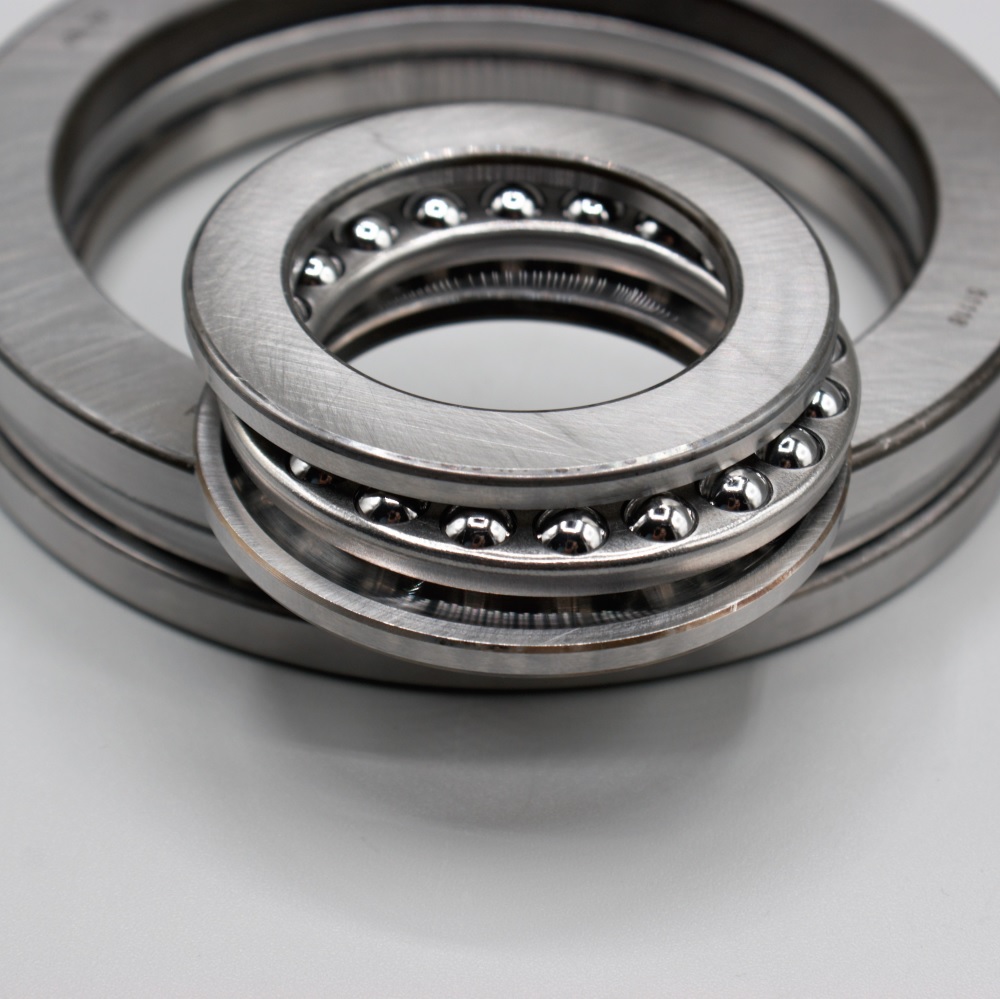

Standard Metric Thrust Bearing. 65mm ID x 90 mm OD x 18 mm Wide

65mm Thrust Ball Bearing

  • SKU: -51113

Product Details

Thrust bearings are designed primarily to support axial loads at contact angles between 30° and 90°. Similar to radial bearings, thrust bearing designs may incorporate balls or rollers as rolling elements
the steel balls of single direction thrust ball bearings are arranged between a pair of washers (shaft washer and housing washer), and the normal contact angle is 90°. Axial loads can be supported in only one direction, and radial loads cannot be accommodated. These bearings are not suitable for high-speed operation.

Product Specifications

Manufacturer Product Code51113
inside dia id (mm)65
outside dia od (mm)90
width (w) (mm)18
Model RefNameUOIPrice (ex. VAT)StockQty
-51113Standard Metric Thrust Bearing. 65mm ID x 90 mm OD x 18 mm Wide1 £19.97 In Stock
-51213Standard Metric Thrust Bearing. 65mm ID x 100 mm OD x 27 mm Wide1 £34.23 2-3 Days
