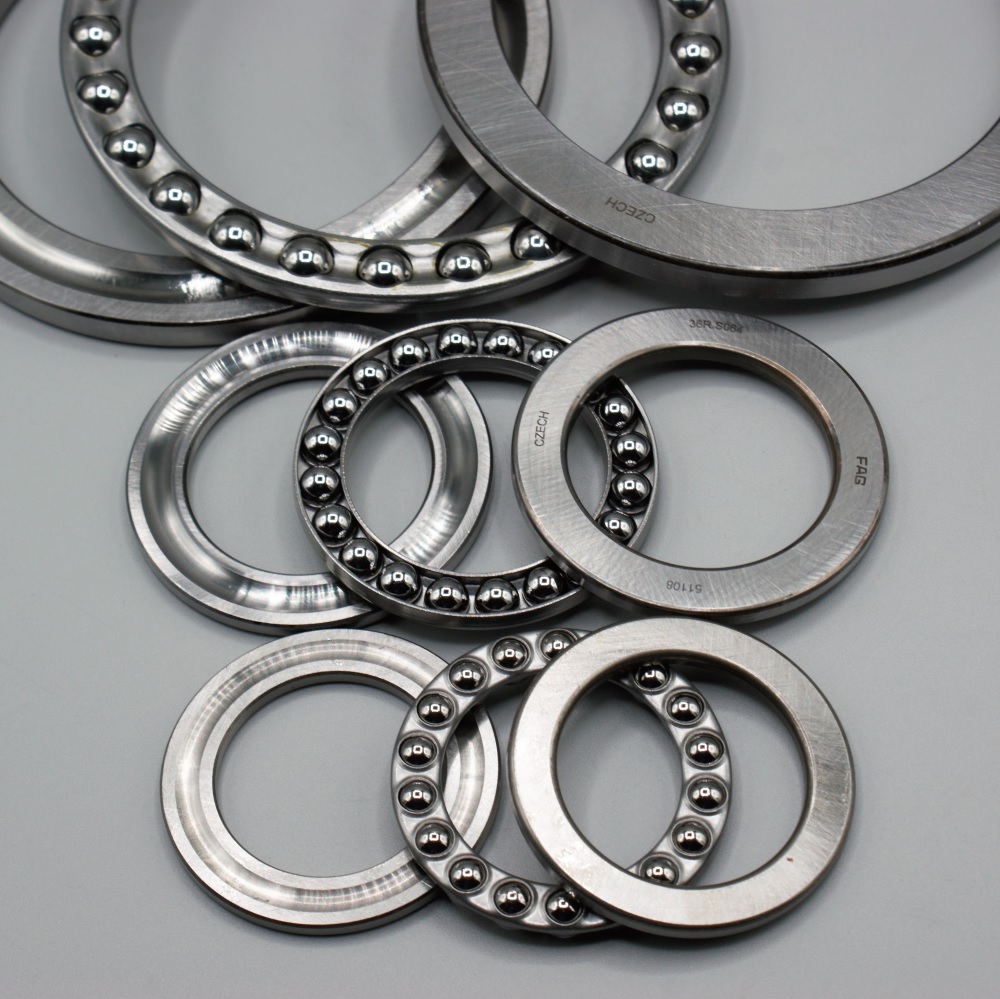

Standard Metric Thrust Bearing. 70mm ID x 95 mm OD x 18 mm Wide

70mm Thrust Ball Bearing

  • SKU: -51114

Product Details

Thrust bearings are designed primarily to support axial loads at contact angles between 30° and 90°. Similar to radial bearings, thrust bearing designs may incorporate balls or rollers as rolling elements
the steel balls of single direction thrust ball bearings are arranged between a pair of washers (shaft washer and housing washer), and the normal contact angle is 90°. Axial loads can be supported in only one direction, and radial loads cannot be accommodated. These bearings are not suitable for high-speed operation.

Product Specifications

Manufacturer Product Code51114
inside dia id (mm)70
outside dia od (mm)95
width (w) (mm)18
Model RefNameUOIPrice (ex. VAT)StockQty
-51114Standard Metric Thrust Bearing. 70mm ID x 95 mm OD x 18 mm Wide1 £22.13 2-3 Days
-51214Standard Metric Thrust Bearing. 70mm ID x 105 mm OD x 27 mm Wide1 £38.62 2-3 Days
