Standard Metric Thrust Bearing. 75mm ID x 100 mm OD x 19 mm Wide

75mm Thrust Ball Bearing

  • SKU: -51115

Product Details

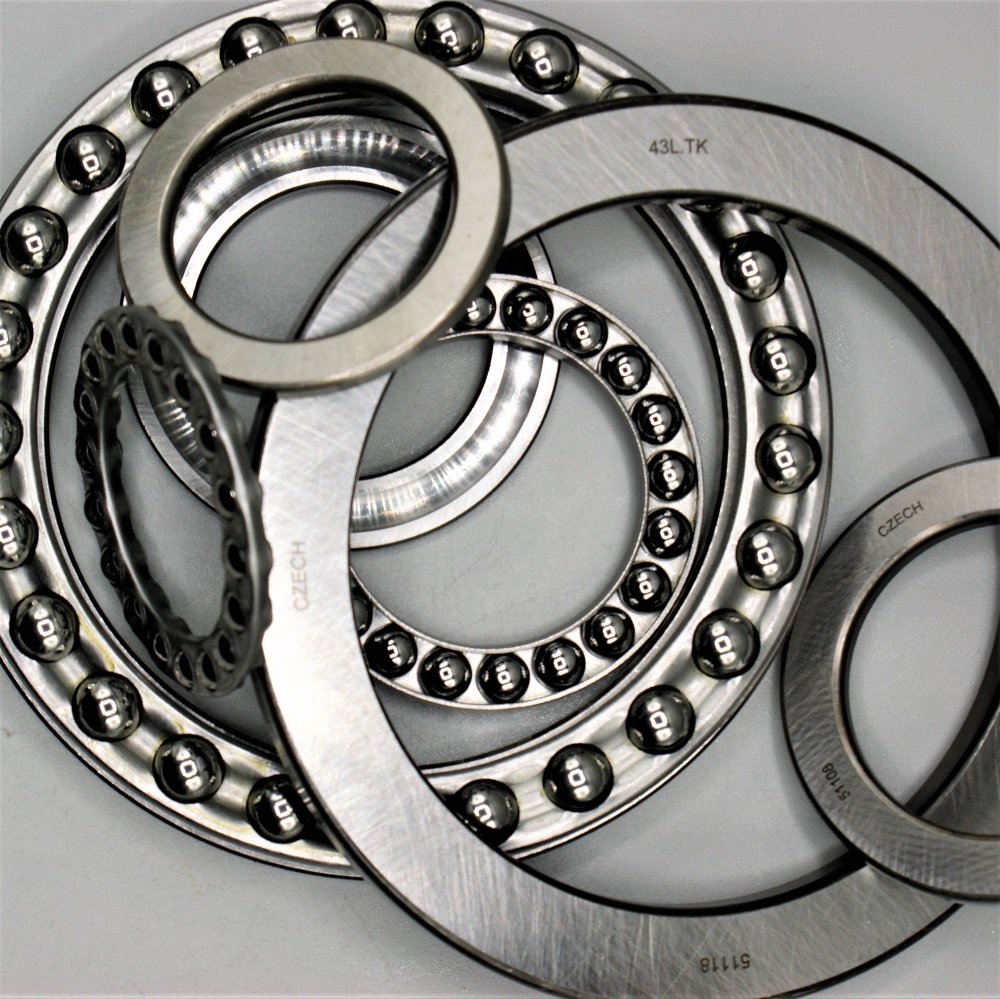

Thrust bearings are designed primarily to support axial loads at contact angles between 30° and 90°. Similar to radial bearings, thrust bearing designs may incorporate balls or rollers as rolling elements
the steel balls of single direction thrust ball bearings are arranged between a pair of washers (shaft washer and housing washer), and the normal contact angle is 90°. Axial loads can be supported in only one direction, and radial loads cannot be accommodated. These bearings are not suitable for high-speed operation.

Product Specifications

Manufacturer Product Code51115
inside dia id (mm)75
outside dia od (mm)100
width (w) (mm)19
Model RefNameUOIPrice (ex. VAT)StockQty
-51115Standard Metric Thrust Bearing. 75mm ID x 100 mm OD x 19 mm Wide1 £24.81 In Stock
