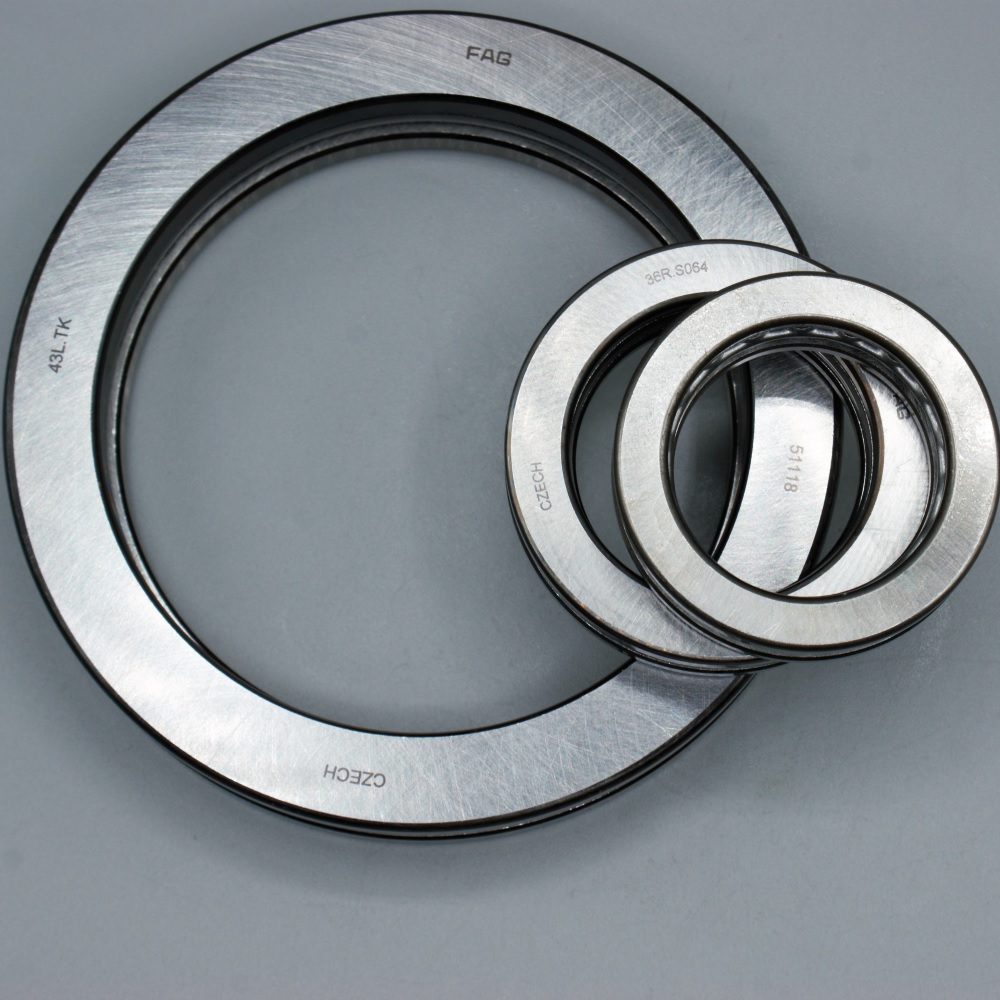

Standard Metric Thrust Bearing. 90mm ID x 120 mm OD x 22 mm Wide

90mm Thrust Ball Bearing

  • SKU: -51118

Product Details

Thrust bearings are designed primarily to support axial loads at contact angles between 30° and 90°. Similar to radial bearings, thrust bearing designs may incorporate balls or rollers as rolling elements
the steel balls of single direction thrust ball bearings are arranged between a pair of washers (shaft washer and housing washer), and the normal contact angle is 90°. Axial loads can be supported in only one direction, and radial loads cannot be accommodated. These bearings are not suitable for high-speed operation.

Product Specifications

inside dia id (mm)90
outside dia od (mm)120
width (w) (mm)22
Model RefNameUOIPrice (ex. VAT)StockQty
-51118Standard Metric Thrust Bearing. 90mm ID x 120 mm OD x 22 mm Wide1 £38.23 In Stock
