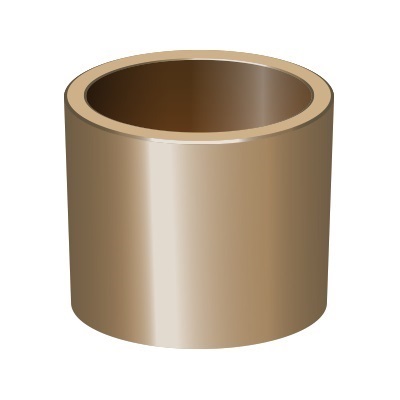

Metric Plain Oilite® Bearings

Materials

Oilite bearings are manufactured in three standard materials. Standard Oilite oil retaining tin bronze is the generally specified material. It gives a good balance between strength, wear resistance, conformability, and durability in operation. Ideal in a wide variety of applications where self-lubricating properties are required over a long period of time.

Super Oilite® is an iron copper material suited to high static loads and slow oscillatory motion.

Iron Oilite® is 100% iron oil-retaining bearings that provide an ideal solution in high-stress low revolution applications.

Oilite® Special Lubricants and Additives

Standard Oilite bearings are impregnated with highly refined mineral oil to ISO VG (SAE 30) having a high viscosity index and containing anti-oxidant, anti-rust, and defoaming additives.

A wide range of lubricants are available to meet specific requirements within a temperature range of -60°C to 200°C, lubricant additives are also available to impart anti-wear properties in marginal lubrication conditions. Special additives are also available for use with various shaft materials and finishes. We are also able to offer special oil to suit customer-specific requirements.

Oilite® Storage

Oilite bearings can be stored for considerable periods without deterioration or loss of oil if kept in a metal or other non-absorbent container, at room temperature. Proximity to heat could cause oil loss by sweating, in which case re-oiling is necessary before fitting. Soak in oil if storage conditions are in doubt. We are able to offer Oilite bearings in sealed plastic bags or boxes.



Filter by

Inside Diameter (mm)
Outside Diameter (mm)
Width (mm)
